Keep summed chains in one row with their feeders tucked under

[BradyAJohnston]

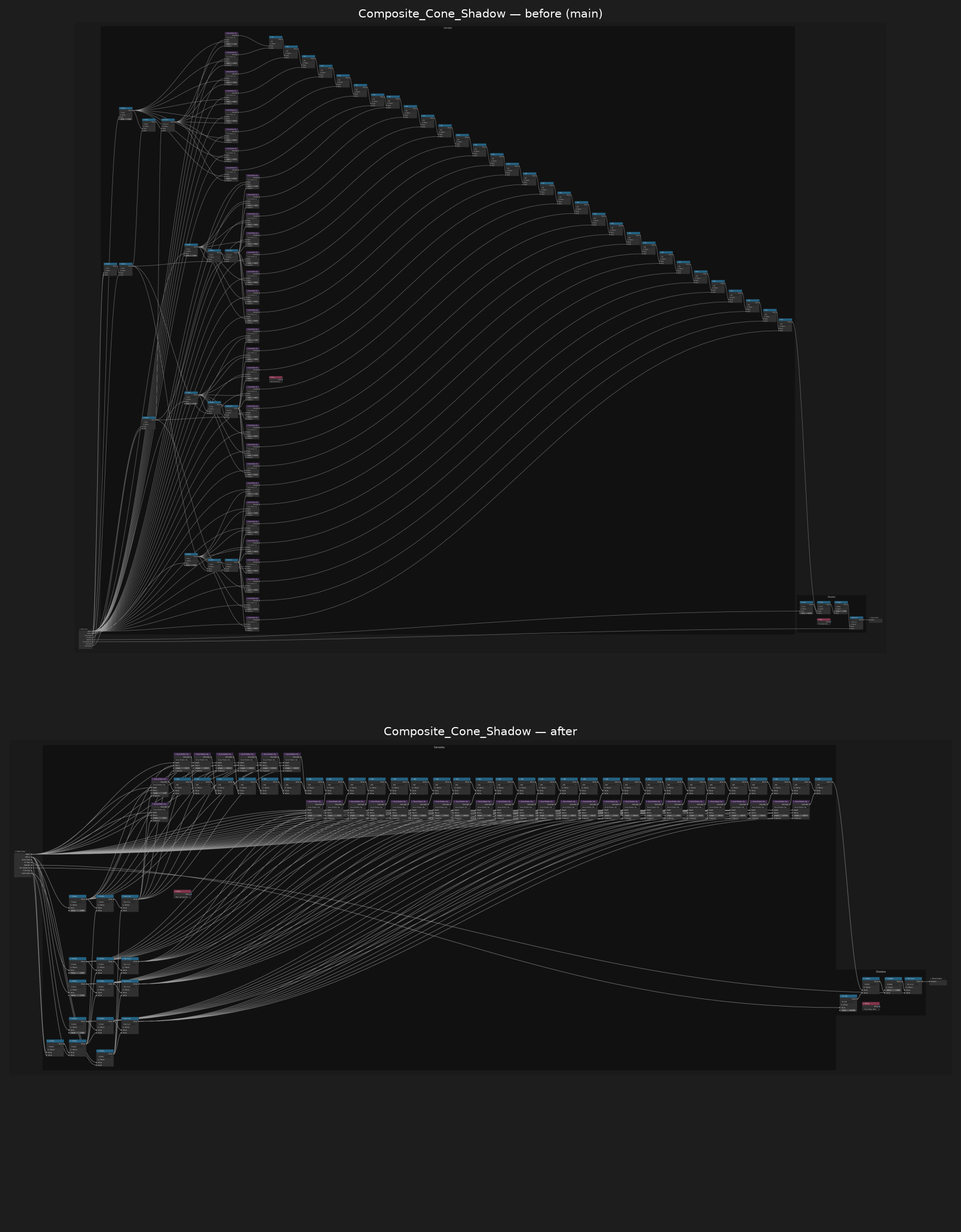

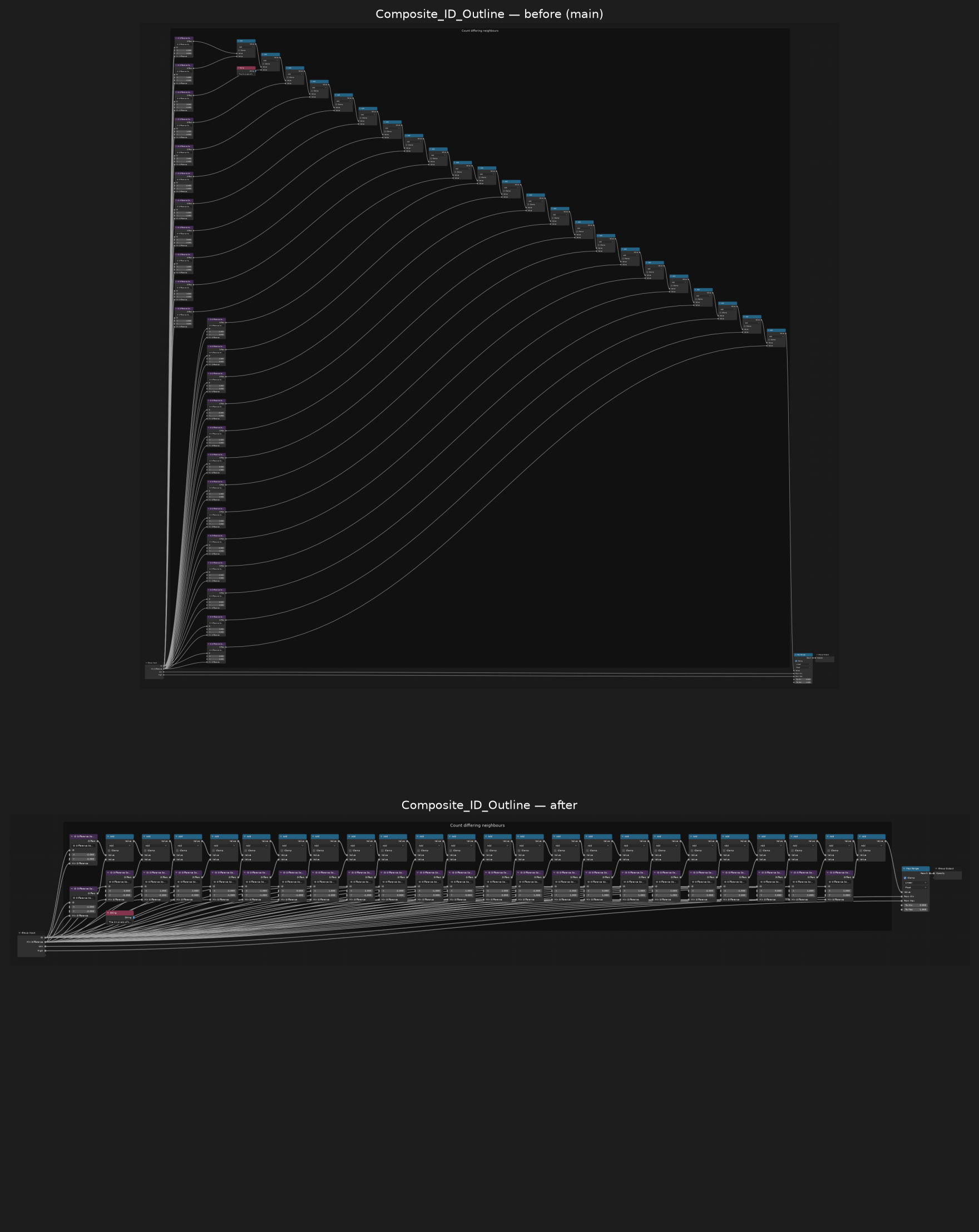

Chains summed through a node's first input (e.g. the Add chains in MolecularNodes' Composite ID Outline / Cone Shadow, BradyAJohnston/MolecularNodes#1240) were laid out as a staircase, with all the feeders piled into the first columns.

• placement.py: when a node has two median predecessors, align with the one across the heavier link first, so a Float-only chain stays one row in all four BK runs.
• feeders.py (new): a node whose links out all go to one node of its frame is moved to the column just before that node (move_feeders_right), placed next to the other node of that column feeding the same node (tuck_feeders), and pulled against it after placement (pull_up_feeders).

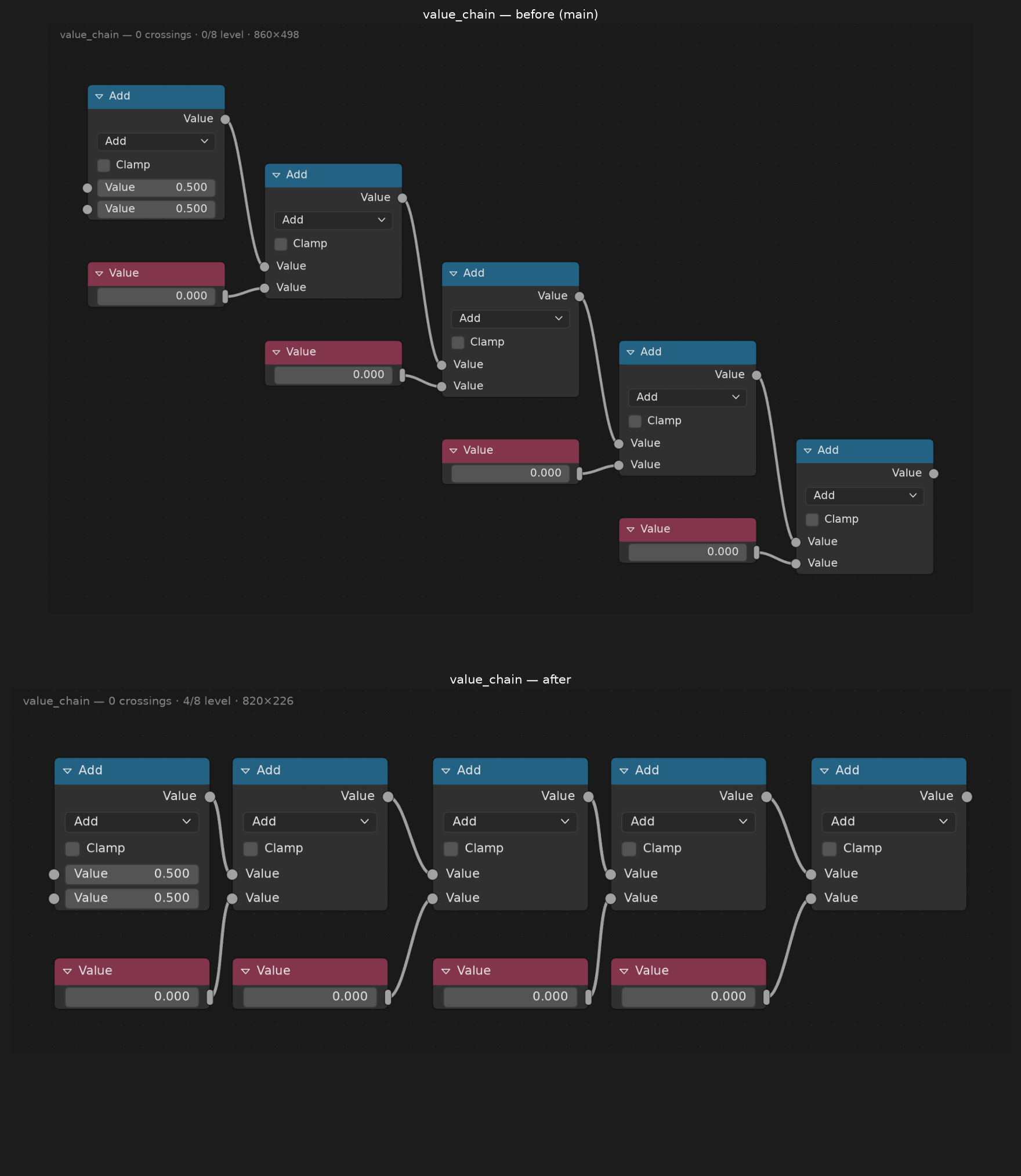

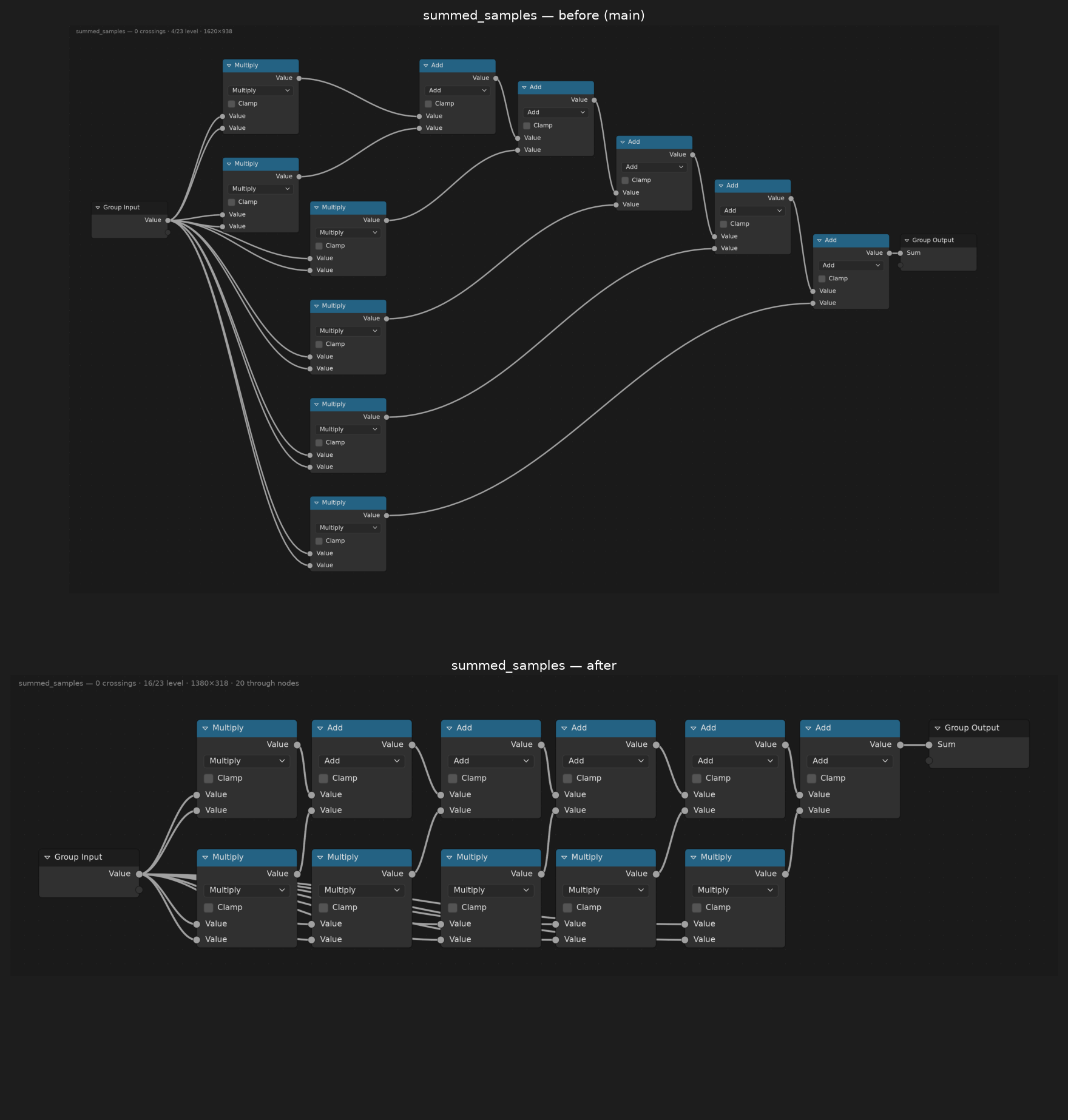

Corpus snapshots updated; new summed_samples case and tests for it and value_chain. Net corpus cost goes up (more long links, e.g. Scatter on Surface crossings 241 -> 300), and the steps also run under "simple". To review more broadly before merging.

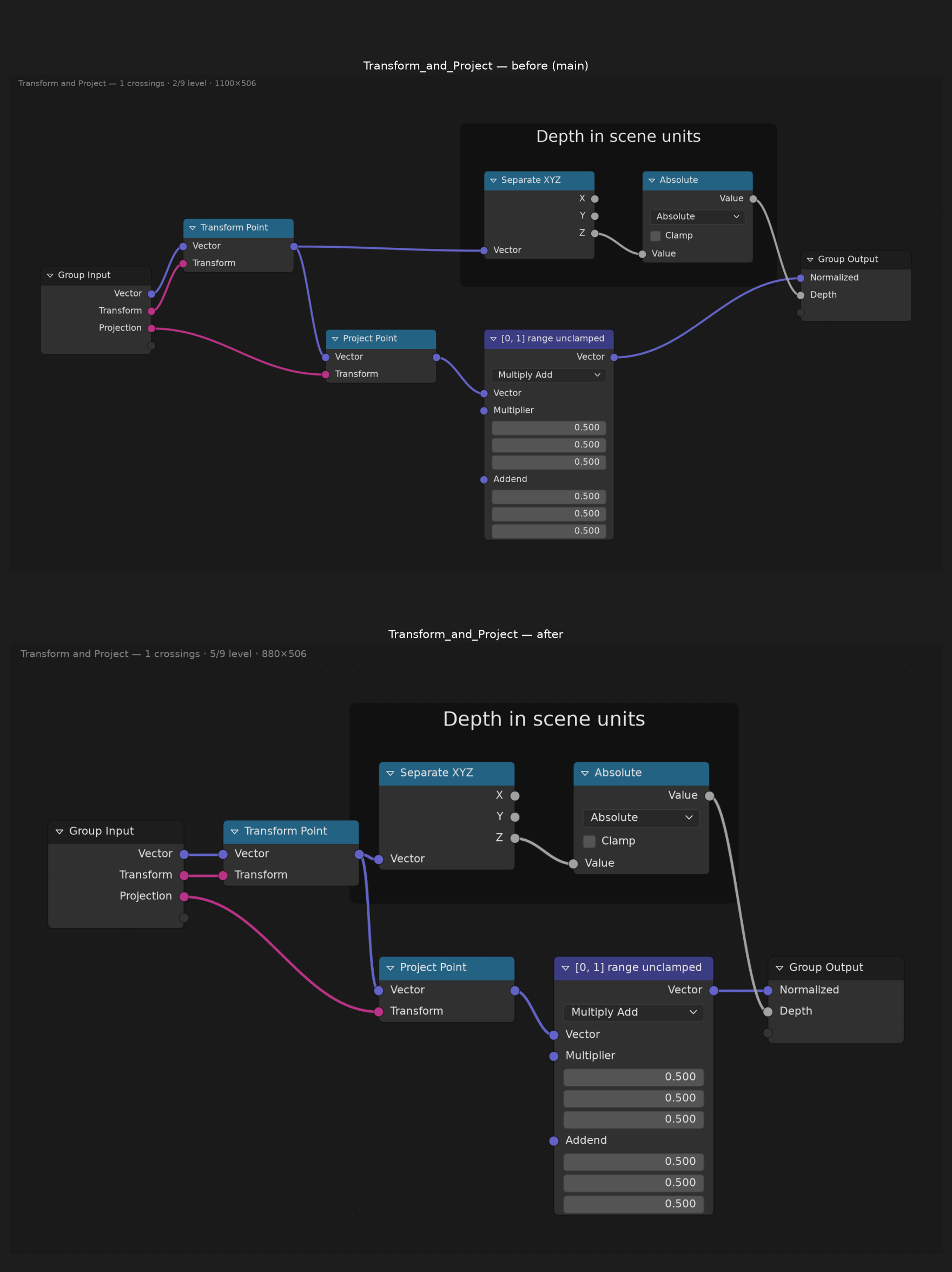

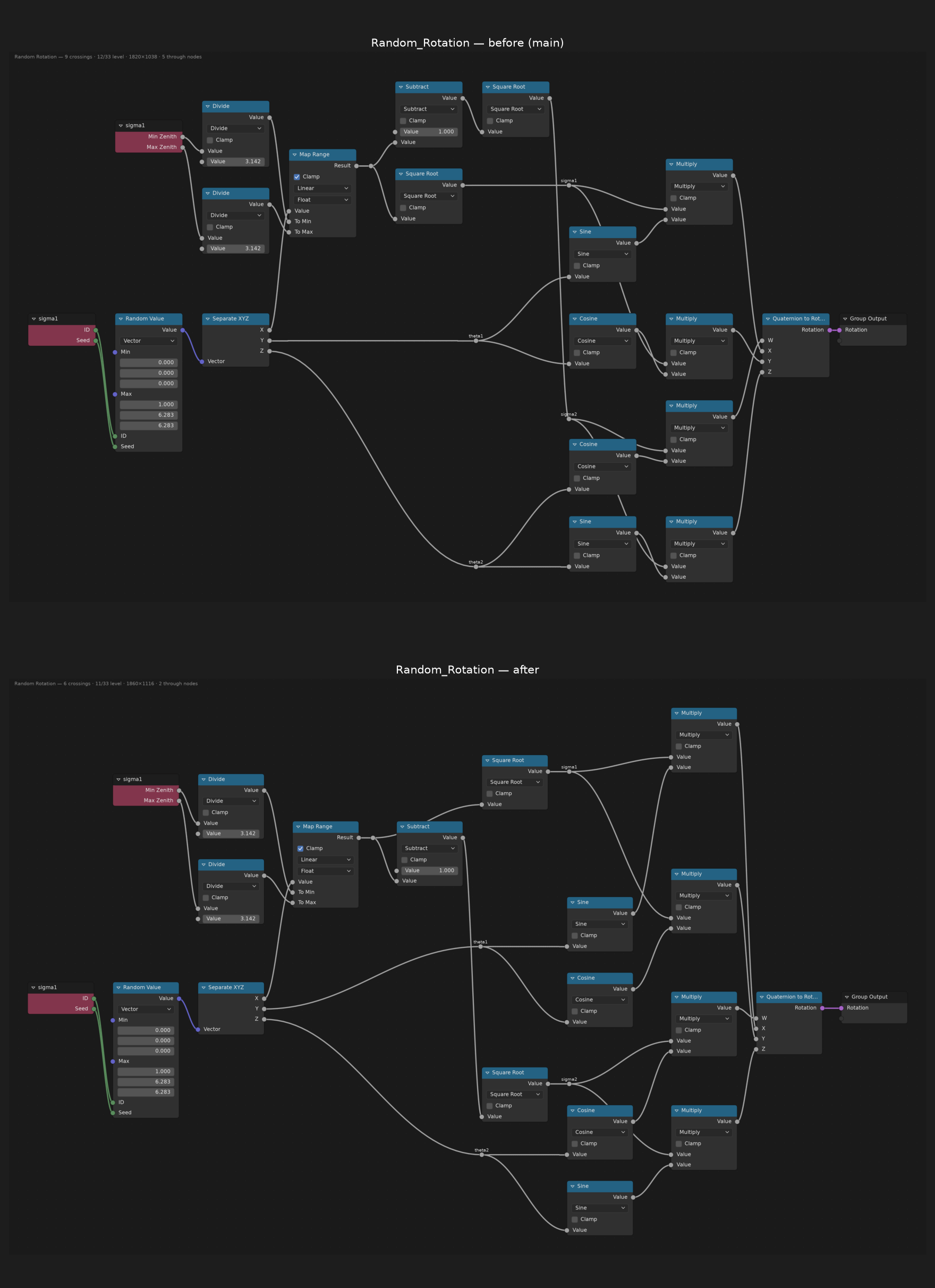

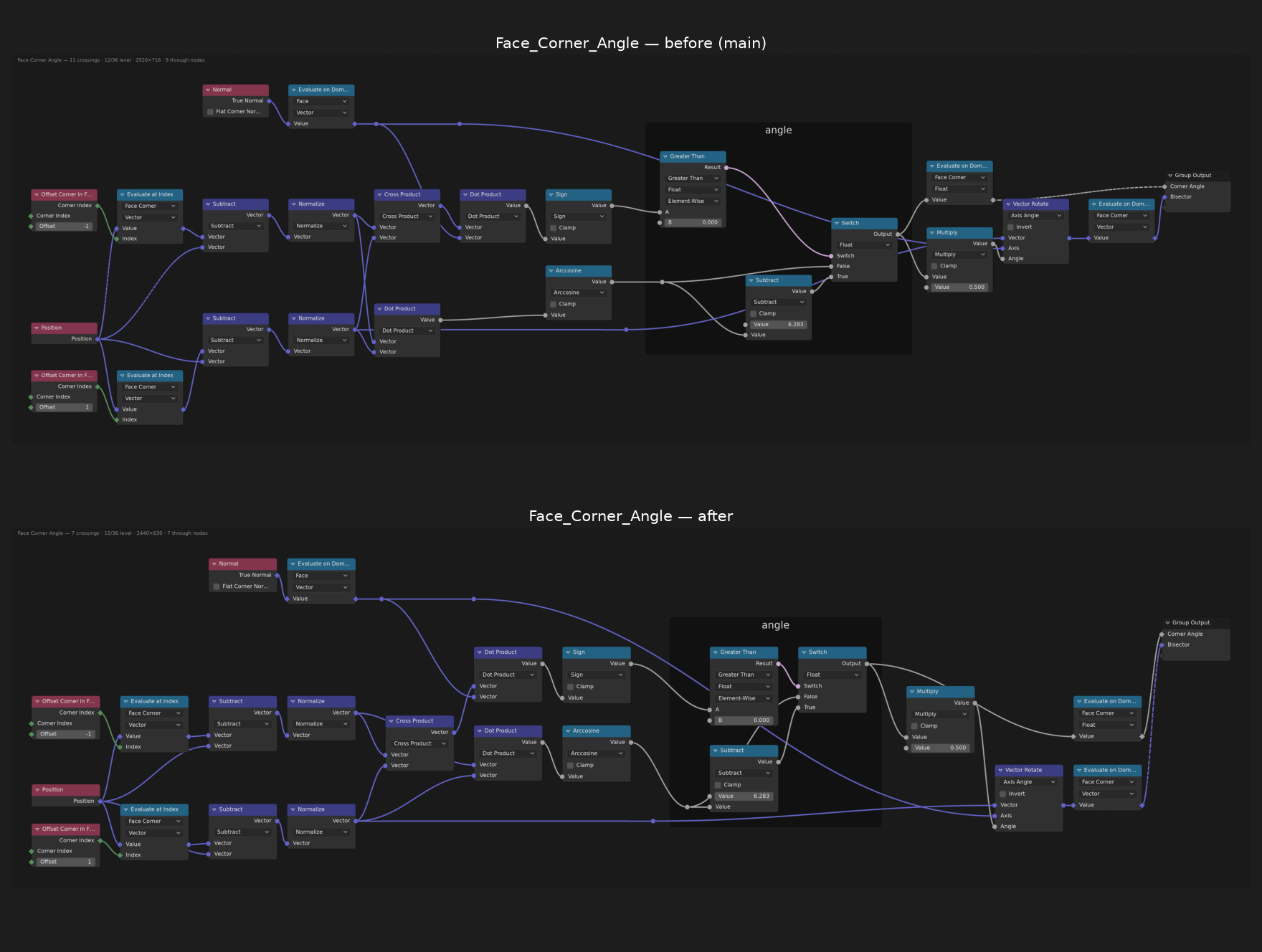

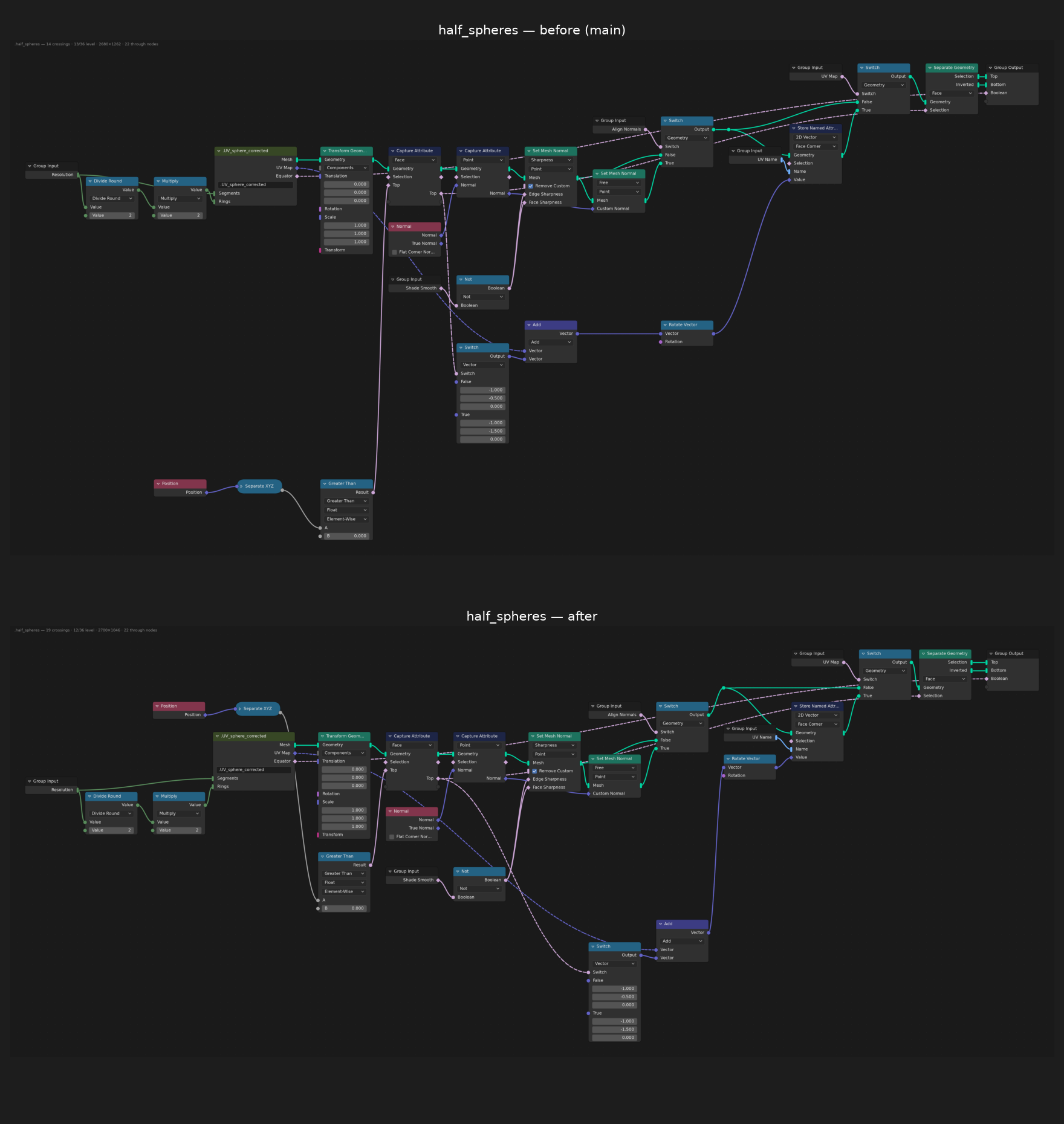

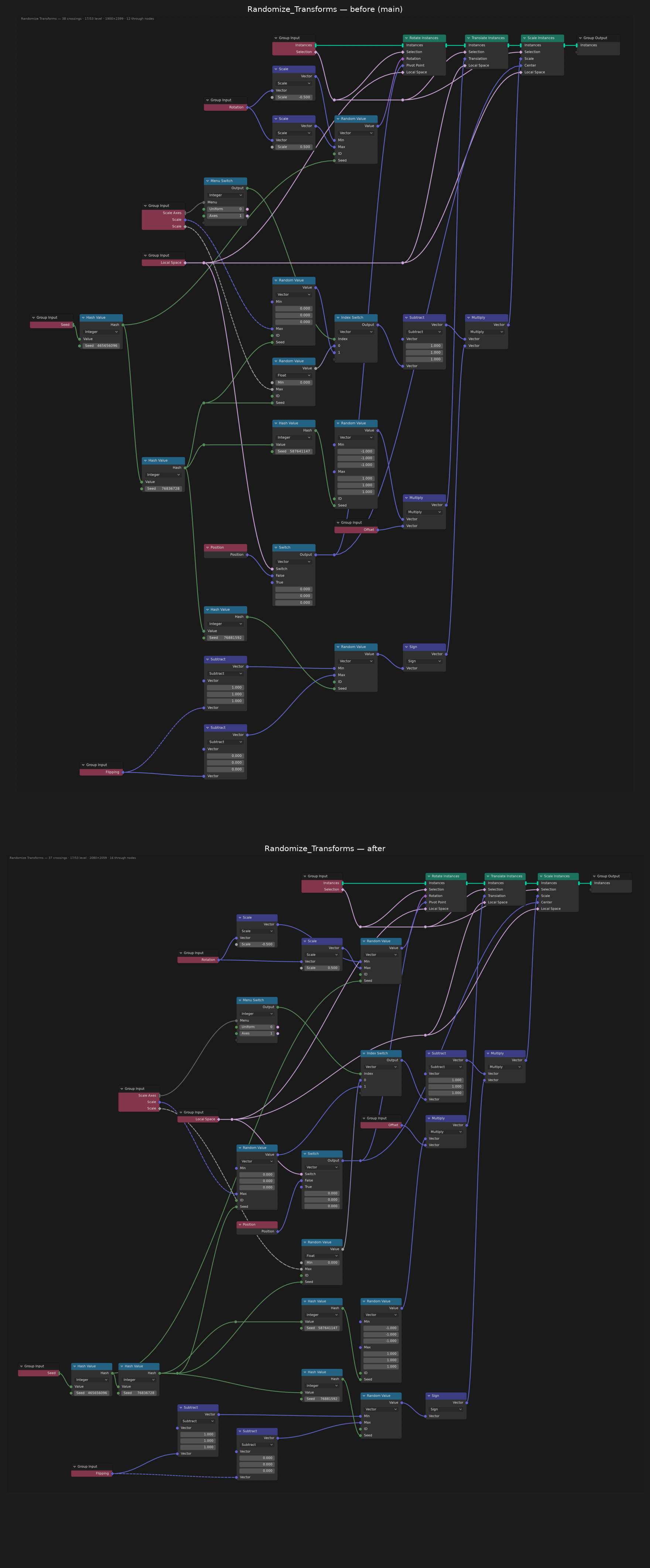

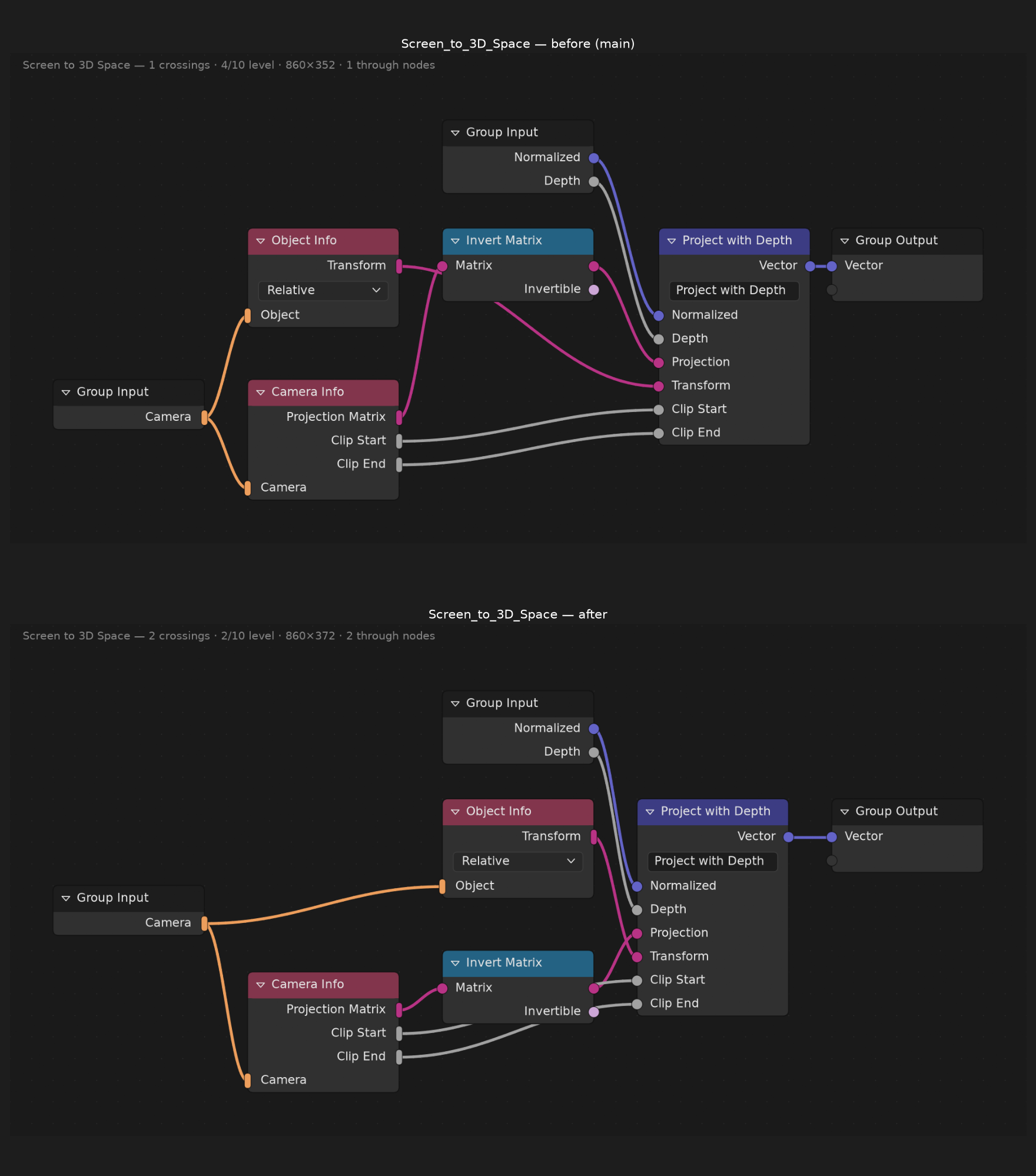

Before (main) above, after below:

Essentials

Images live on the pr-images/layout-feeder-rows branch; delete it after merging.
