Add optional compact model picker and effort controls - #471
Merged
Merged
Conversation
This was referenced Sep 19, 2026
gaelcado
force-pushed
the
codex/compact-picker
branch
from
September 29, 2026 15:58
47c11ac to
222b96a
Compare
…icon) Carry over the setting, haptic, placement-helper, and icon dependencies the compact model picker needs, without picker behavior: - UiSettings.compact_model_picker + reader + appearance toggle + shell sync (source: baa9133 settings/appearance/shell hunks). - haptics.selection_step + NSHapticFeedback feature + mod wiring (source: 4c5508e haptics.rs, Cargo.toml, lib.rs). - popover concentric MENU_ITEM_RADIUS, search-frame radius, and faded_menu_list helper (source: 80e138e popover hunks plus the pre-existing faded helper HEAD lacks). - FAST_TIER icon registration + fast-tier.svg asset (predates f85983c; required by the compact fast control).
Extract the opt-in compact model picker (effort slider, fast toggle, reset, option shortcuts, separate All-models list) against current main: - pickers.rs wiring: ModelRail::All, compact state fields, open/reset handling, panel/list key routing incl. cmd-shift-F favorite toggle, status-aware nav bounds, compact row delegate, trait filtering, and the compact menu branch in Render (sources: baa9133, d8a5e48, a54512b placement already on main so not re-added, 16a8ddd, 4c5508e, plus 28682d7 compact keyboard-follow, All favorites-first, and final control order). - pickers/compact.rs: final 3b3f987 polish module with native agent-mode retains reverted to plain clear(), and menu height adapted from menu_geometry() to HEAD model_space_below. - tests: compact keyboard/panel, catalog statuses, All favorites-first. Excluded: native agent-mode filtering/commands, goal intent, fixture catalogs, Markdown editor, rich invocation types, and the old menu_geometry/open-width stabilization superseded by HEAD placement.
Adapted from bd3f11e on feat/desktop-parakeet-dictation without the microphone spacing. The attachment stays left and the model selector stays beside Send in collapsed and expanded layouts, with no left/right relocation animation. Geometry tests cover both picker modes.
Soften the shared glass recipe: shallower drops, a flatter lift, no accent halo at rest, and a recessed light-mode track whose highlight is inset (GPUI paints drop shadows under translucent fills). Toggles get a pill thumb with a dimpled grip, thin on/off marks and a wider track.
Upward menus rose by dropping 2px toward the trigger. Entrances now travel 4px out of the trigger's side and exits retreat 2px back.
A balanced header (fast button, effort over the model name as one link with a leaning chevron), a pill-thumb effort slider with a flowing fast-mode fill, no reset control, a tighter card, and a one-line model list with a provider jump strip that opens on the current model.
The chip froze at its opening width, truncating the new model or effort. It now eases to its measured content width; the chip and its popover are anchored at the trailing edge, so the card stays put.
Only Codex's serviceTier drove the fast button, chip mark and slider effect; Claude's fastMode toggle and ACP speed options fell through to a plain option row. One detector now recognises all of them.
The fast-mode button drops its accent plate for a faint neutral one with an accent glyph. Both header buttons fill the header so their radius is concentric with the card, the model button fills the row, and the title, rail and option labels share one 12pt edge. Accent glass uses the theme's accent_strong fill token with fainter dark lighting, so dark fills match the accent elsewhere instead of washing out. Switches follow the effort slider: a longer rail, an overhanging pill thumb and a fill that runs behind it. Grip dimples snap to device pixels, and the slider thumb lifts on press instead of shrinking and reflowing its grip.
Add a clean inset knob with adaptive shadows, simplify rail crossfading, and replace grip marks with polished state indicators.
The slider thumb becomes a plain glass handle, matching the switches, and the now-unused dimple grip helper goes away.
gaelcado
force-pushed
the
codex/compact-picker
branch
from
September 29, 2026 23:53
d530d10 to
2d52160
Compare
gaelcado
marked this pull request as ready for review
September 30, 2026 14:27
- Make the compact picker the default and move its toggle to General. - Restore the pre-PR switch styling. - Reopen the new-session canvas on the project/device it was left at. - Header: keep the selected harness beside the back button; harness strip scrolls sideways with per-edge fades that reach zero at the clip edge. - Show settings of models configured in place (e.g. Fusion) in the panel; drop catalog status rows and the selected-model checkmark. - Fast mode as a toggle for every harness shape (Claude fastMode, Cursor fast true/false, Codex/Devin tier); bare button with hover plate and a solid bolt when on, in the panel and on the composer chip. - Even spacing for single-row panels and the options list's bottom edge. - Fade chip text at the clip edge while the chip width animates. - Bump zui to 667d0aa (per-pixel SVG edge fades, per-edge fade bands) and gpui-component to match. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
- Panel: a provider button leads the model button; it opens a provider page (Starred first once anything is starred, then each provider). Picking a provider switches to its last-used model at that model's last settings. - Remember effort per model, falling back to the last level used. - List pages: one header row with the back button beside the filter; the model list holds the current provider's models. - Cursor: drive its effort option (effort/reasoning/reasoning_effort) with the slider and show it on the composer chip. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
The panel no longer tabs through its controls behind a focus ring. Its keys act directly while it is the picker's page: Up/Down open the model list on the model beside the selected one, Tab cycles providers at their last-used model, Left/Right (Home/End) set the effort, Enter opens the list, Escape closes. Keyboard highlight in the lists is the hover look. Co-Authored-By: Claude Fable 5.1 <noreply@anthropic.com>
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
2 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.

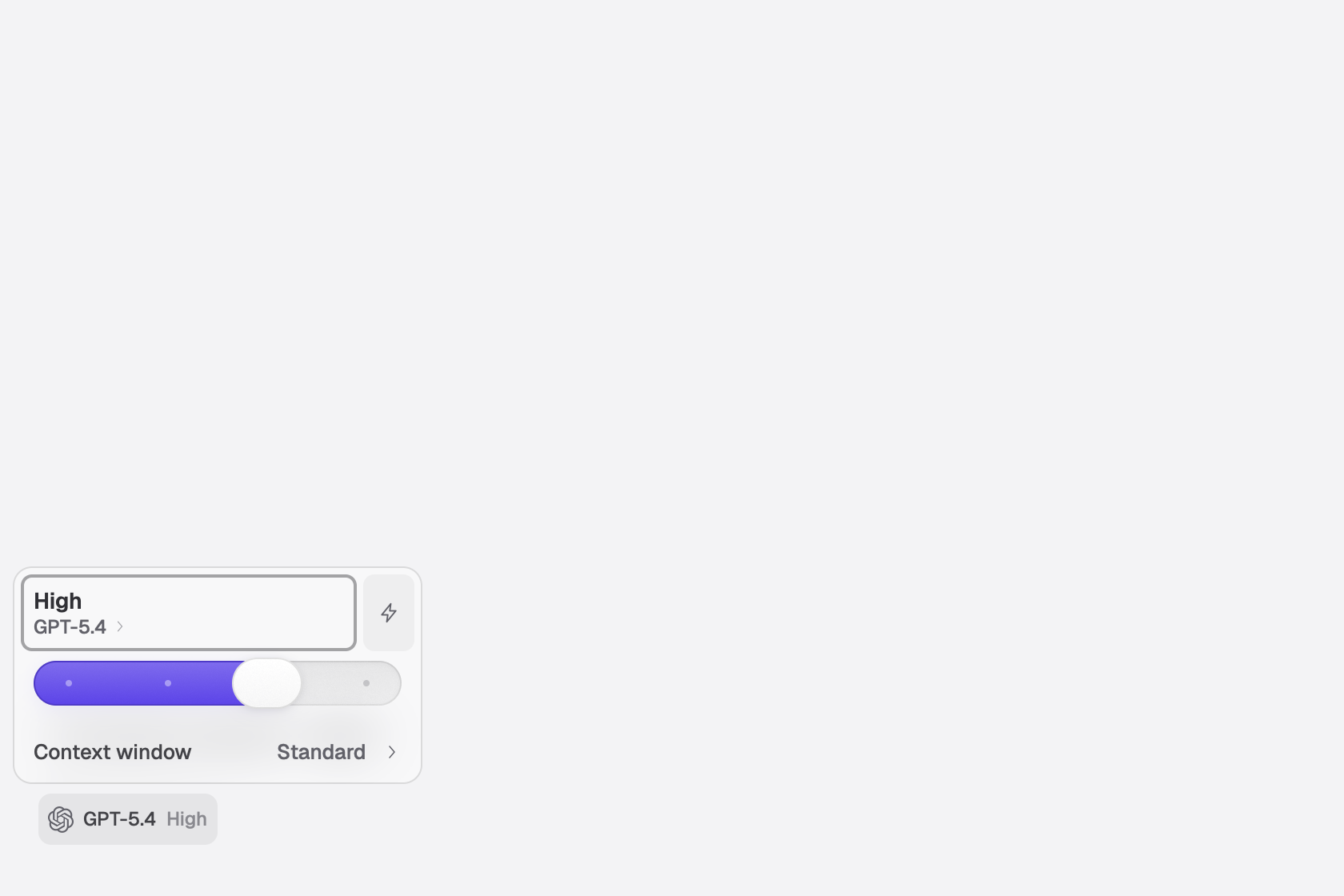

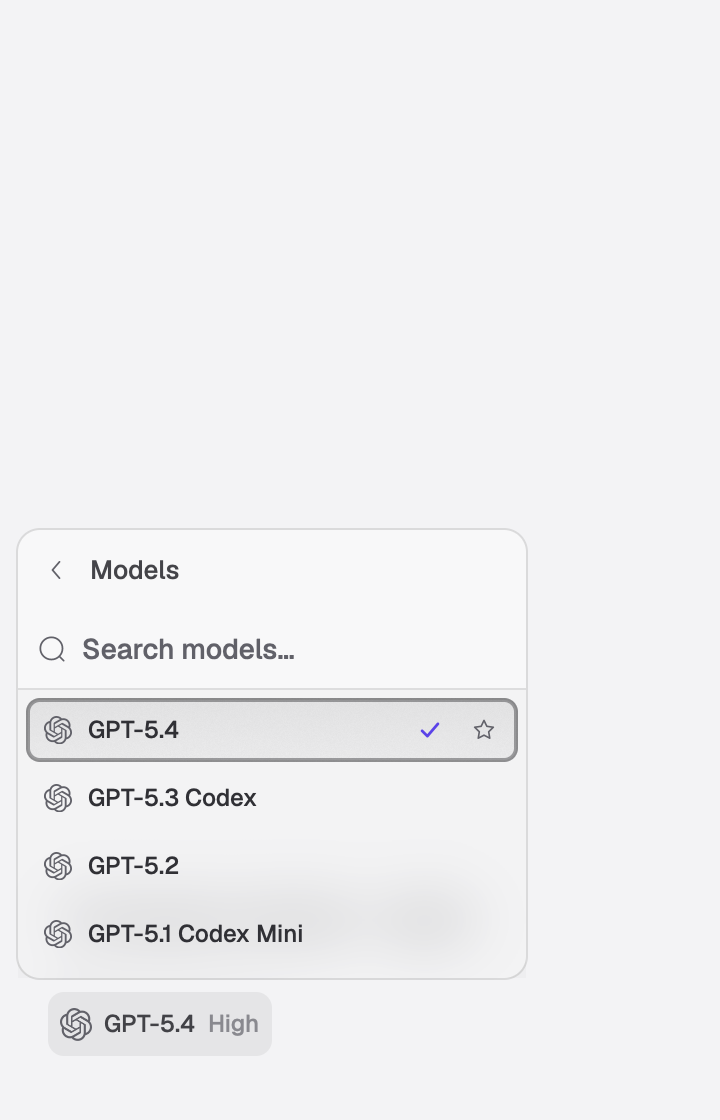

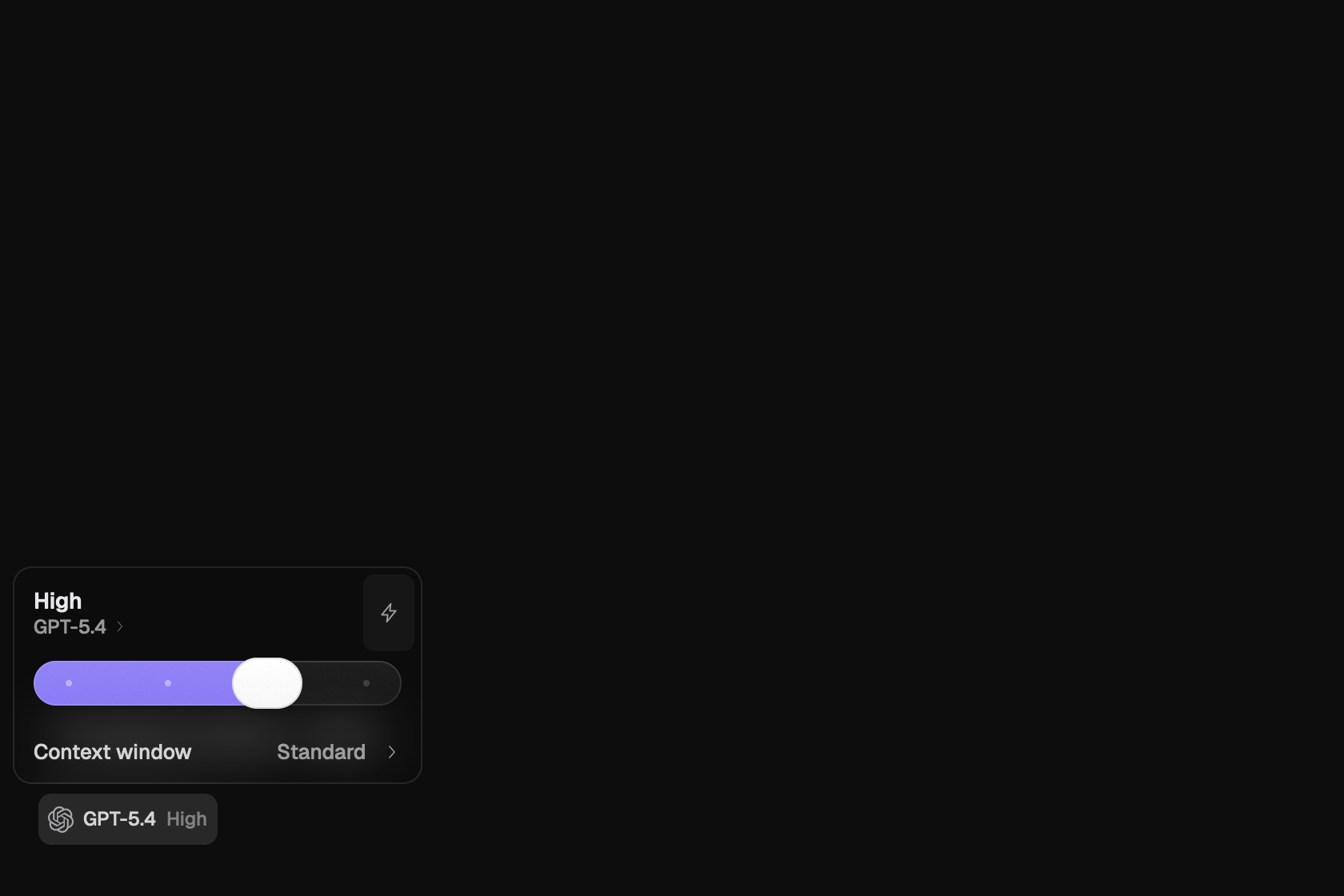

The optional compact model picker puts model selection, reasoning effort and fast-tier controls in a smaller composer popover. It preserves keyboard navigation and favorite identity when the model list reorders, and keeps loading/error/retry states visible alongside available models.
Extracted from #429 as an independent draft against
main. Rich editing (#469) and native interactions (#470) are separate drafts. Shared picker code requires semantic conflict resolution when those changes merge; the private merge audit retains the original combined behavior.Validation
Rebased on
main26e2b0dd; tested at6ec139a2(the evidence commit on top adds only screenshots).cargo test --locked -p zeron-ui --lib -- --test-threads=1: 1,338 passed.cargo check --locked -p zeron -p zeron-ui --all-targets --features zeron-ui/appshots-fixture: passed.git diff --checkpasses;cargo fmt --all --checkreports the same 25 files asmain, none added by this branch.Evidence
Captured from source

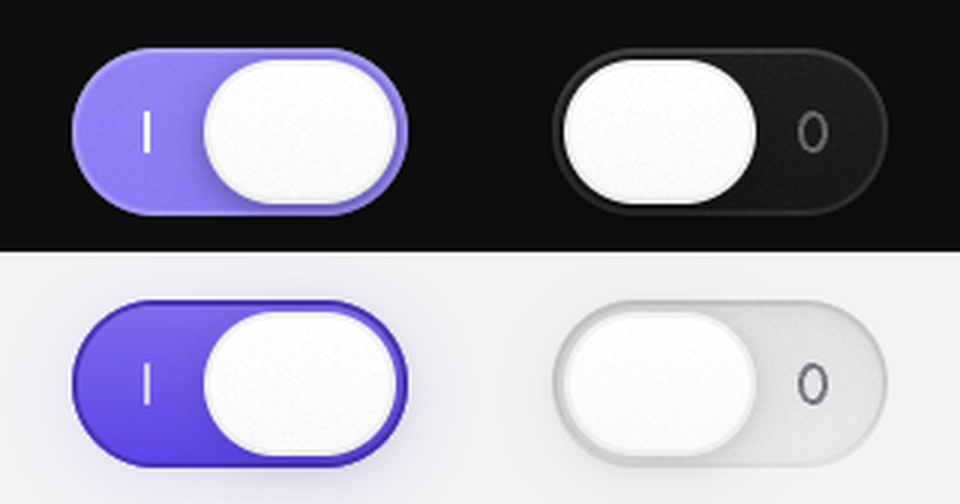

6ec139a2with the unmodified fixture (synthetic catalogs, default accent); hashes and capture details are indocs/screenshots/compact-picker/README.md. Static frames do not establish animation performance.Settings switches, on and off, dark above and light below. Captured from the same source with a local, uncommitted fixture patch that adds two switches:
