Associated Notebooks

The associated notebooks for this project are located within the main repository: https://github.com/andrespineda/UC_Berkeley_MLAI_Capstone

• Data Analysis and Modeling: HRV_Stress_Detection.ipynb

• Data Analysis and Modeling: HRV_Keras_CNN.ipynb

Table of Contents

• Introduction
• Methodology
• 1. Understanding the Business
• 2. Understanding the Data
• 3. Data Preparation
• 4. Modeling
• 5a. Evaluation using Logistic Regression, Decision Tree, KNN, SVM
• 5b. Evaluation using a Convolutional Neural Network
• 6. Deployment
• References

Introduction

This project was developed as the Capstone Project to the UC Berkeley Professional Certificate in Machine Learning and Artificial Intelligence Program. The program provides practical insights into the business applications of ML and AI technologies(UC Berkeley Executive Education., n.d.)

Methodology

The Data Analysis will use the Cross Industry Standard Process for Data Mining (CRISP-DM) method (Schröer, et al, 2021) of data analysis. CRISP-DM

The CRISP-DM (Cross-Industry Standard Process for Data Mining) approach to data analysis involves six major steps as outlined below:

1. Understanding the Business:

This initial step involves conducting an in-depth analysis of the business objectives and needs. It includes assessing the current situation, defining goals based on insights, and setting up a plan to proceed.

2. Understanding the Data:

In this phase, data is collected from various sources (WESAD and SWELL was selected), its format and type are determined, and the data is profiled. Tasks include exploring the data, describing it, and ensuring its quality, accuracy, and validity.

3. Data Preparation:

Careful selection, cleansing, construction, and formatting of the data are carried out in this step. The data are organized for modeling, and formation exploration is conducted to identify patterns aligned with business insights.

4. Modeling:

The modeling phase involves selecting modeling techniques, generating test scenarios for validation, building various models, and assessing them to ensure alignment with business objectives.

5. Evaluation:

During this phase, the results of the models are evaluated against business intentions. Multiple models are assessed to determine which one best meets the project's goals.

6. Deployment/Communication:

The final step involves presenting the gathered information in a usable manner to stakeholders according to their expectations and business requirements. This phase may vary in complexity based on numerous factors.

1.Understanding the Business

Background

Research shows that stress is a major issue for young adults. A 2022 survey found that young adults aged 18–24 reported 5.8 out of 10 in stress-related symptoms, compared to a 3.8 score of those aged 65 and older. Stress is also linked to many health issues, including heart disease, cancer, lung ailments, accidents, cirrhosis of the liver, and suicide (Statista, 2023).

Some indications of the ill effects of stress can be visually identified without special equipment, but sustained long term stress may cause internal issues that are not easily detected. The common method of measuring underlying stress conditions requires a trip to a medical facility where expensive medical equipment is used by trained clinicians.

Challenge: If there was a way that a person could accurately and inexpensively measure their stress levels without going to a clinic, they could use that information as feedback so that they could learn to monitor and control their stress levels on their own.

Capstone Research Question

Can commonly available wearable devices be used to accurately self-monitor stress levels?

Business Objective

The business objective is to develop a machine learning classification model that can determine whether heart rate samples collected from a wearable device can accurately detect stress patterns. The heartbeat cadence, the time interval between beats, has been proven to be a reliable indicator of stress.

Counterintuitively, a predictive pattern of regular time intervals is indicative of a stressful situation. A non-stressful measurement will include a variation in the pattern of beats.

HRV, or Heart Rate Variability, is a medical term for the measurement of the variation in time between each heartbeat. Collected HRV data will be used to train a classification model. By training a classification model we will be able to take measurements of HRV and determine whether someone is stressed or not. We will use labeled datasets that have been captured during stressful and non-stressful conditions for training. The labeled data will be used to teach the model to recognize patterns that differentiate between the two conditions. Once trained, the model will be able to classify new input files of HRV data, allowing us to better understand the relationship between HRV and stress.

Why is this important?

Using an inexpensive wearable device to capture, classify, and present a visual indicator of a person's stress level can help reduce a severe problem faced by young adults. This tool would allow a person to self-monitor and control their stress levels without the need for expensive clinical equipment or visits to a medical facility.

How can this be achieved?

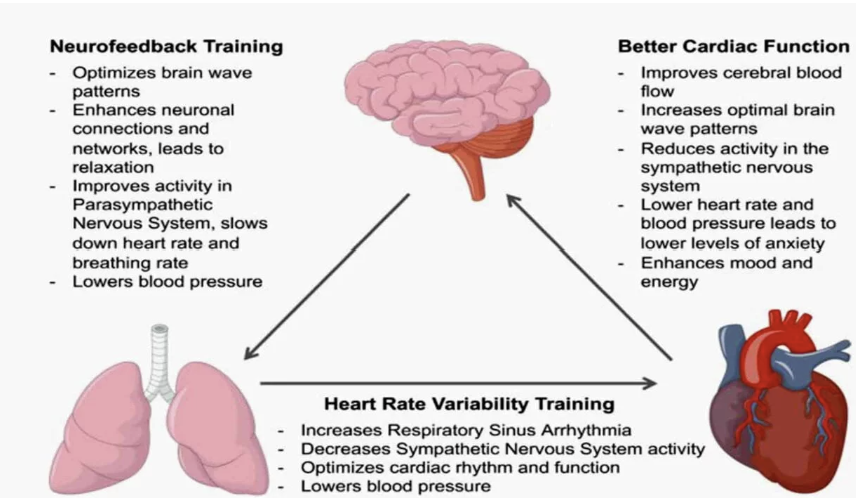

Heart Rate Variability (HRV) is a powerful physiological indicator that provides valuable insights into the functioning of the autonomic nervous system, particularly the parasympathetic branch (Cleveland Clinic, 2021). HRV measures the variation in time between successive heartbeats, reflecting the body's ability to adapt to changing circumstances and stress levels.

The parasympathetic nervous system, often referred to as the "rest and digest" system, plays a crucial role in maintaining balance and promoting relaxation in the body. When stress levels increase, the parasympathetic system's activity typically decreases, leading to a reduction in HRV.

Monitoring HRV can provide important clues about an individual's stress levels and overall well-being:

1. Stress detection: Lower HRV often indicates higher stress levels and reduced parasympathetic activity.

2. Recovery assessment: HRV can help evaluate how well the body recovers from physical or mental stressors.

3. Health indicator: Chronically low HRV may signal increased risk for various health issues, including cardiovascular problems and mental health disorders.

4. Biofeedback tool: HRV measurements can be used to help individuals learn to manage stress more effectively through techniques like deep breathing and meditation (Biofeedback-Neurofeedback-Therapy.com, n.d.).

By tracking HRV over time, individuals can gain valuable insights into stress levels and parasympathetic nervous system function. This information can be used to implement targeted interventions and lifestyle changes to improve overall health and well-being.

Business Expected Results

The goal is to create a classification model can accurately classify stress level categories using a short sampling of HRV data. Ideally, a sampling period of one to three minutes will be sufficient for the model to classify the stress level during the sampling period.

With the proliferation of wearable technology, such as an Apple watch, or even a smartphone with a camera, there are new opportunities to capture HRV data. The trained classification model will be able to immediatly assess the stress level of the person. The results of the classification model need to be presented to the user via a easy-to-understand visual stress indicator on their smartphone. For example, a circular gauge that goes from blue for low stress to red to indicate high stress. Other similar user interfaces will be considered for ease of use and effectiveness.

Business Success Criteria

The success criteria will be based on meeting the following measurable results:

1. A classification model will be developed that can take as input a one-to-three minute recording of a person's heart rate.

2. The classification model will be able to use the captured data to classify the readings as stressful or non-stressful.

3. The expected accuracy of the predictions will be a recall score (sensitivity or true positive rate) of at least 85%. It is important for the model to correctly identify true positives so that the person can take corrective action. In this problem, a high recall value is preferable to a high accuracy score.

4. The classification model will be able to classify within 15 seconds. The model will eventually operate within a smartphone as it wil be important for the user to be able to get a stress reading immediately after taking a heart rate sample.

Understanding the Data

Data Sources

Developing an accurate machine learning model requires training data of heart rate signals during stressful and non-stressful conditions.

An data source was identified for this project:

WESAD

WESAD (Wearable Stress and Affect Detection) contains data of 15 subjects during a stress-affect lab study, while wearing physiological and motion sensors. WESAD is a publicly available dataset for wearable stress and affect detection. This multimodal dataset features physiological and motion data, recorded from both a wrist- and a chest-worn device, of 15 subjects during a lab study. The following sensor modalities are included: blood volume pulse, electrocardiogram, electrodermal activity, electromyogram, respiration, body temperature, and three-axis acceleration. Moreover, the dataset bridges the gap between previous lab studies on stress and emotions, by containing three different affective states (neutral, stress, amusement). In addition, self-reports of the subjects, which were obtained using several established questionnaires, are contained in the dataset.(Schmidt, et.al., 2018)

The original published paper and links to download the dataset can be found via this link:

https://archive.ics.uci.edu/dataset/465/wesad+wearable+stress+and+affect+detection

A second dataset was used for Convolutional Neural Network Modeling to show the ability to process additional types of data.

SWELL

In 2014, a study was conducted to measure the heart rate of a group under normal and stressful conditions. The data was collected by researchers at the Institute for Computing and Information Sciences at Radboud University (Koldijk, S., et.al.,2014). The dataset, referred to as SWELL, consists of heart rate signal recordings of 25 subjects doing typical office work, including writing reports, making presentations, reading e-mail and searching for information. The scientists recorded the signals during typical working stressors such as receiving unexpected emails interruptions and pressure to complete their work on time.

A copy of the original paper can be found at this location:

https://www.cs.ru.nl/~skoldijk/Papers/ICMI%202014%20paper_final_cr.pdf

Data Content

The WESAD dataset includes Electrocardiogram (ECG) measures of various subjects during hours of stressing, amusing, relaxing, and neutral situations.

Below is a table listing the ECG data field acronyms with their definitions, although a smaller subset will used in the training:

Data Sample

The selected data for this project consists of 2.1M rows of ECG and related data elements.

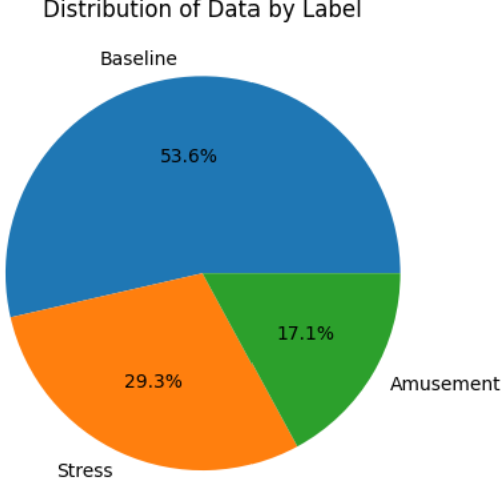

The data's target variable is labeled in three categories: Baseline (no stress), Stress, or Amusement(Happy) as depicted by the following pie chart:

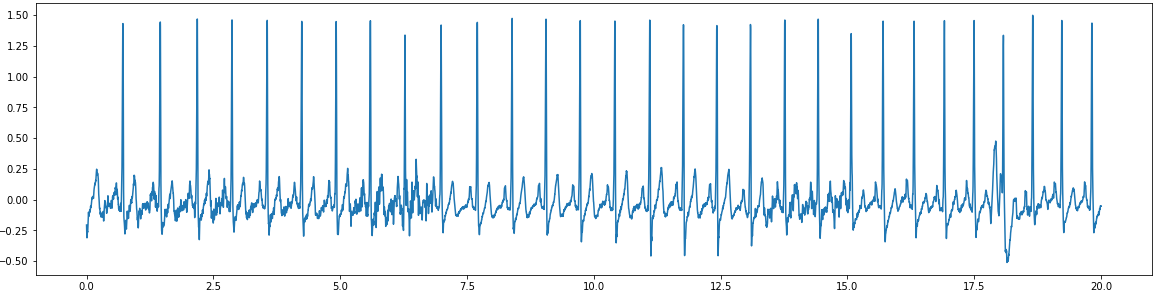

Below is a sample of the ECG signal from this data:

Data Prep

Data preparation is a key step in the data analysis process, laying the foundation for accurate and meaningful insights. This phase involves several key tasks to ensure the data is clean, consistent, and ready for analysis. Initially, data must be collected from the WESAD dataset and consolidated into a unified format. Raw data often contains errors, missing values, and inconsistencies that need to be addressed through data cleaning techniques such as removing duplicates, adjusting missing values, and correcting formatting issues. Data transformation may be necessary to convert variables into appropriate formats or to create derived features that enhance the analysis. Normalization and standardization techniques are often applied to ensure comparability across different scales. Finally, data reduction techniques like feature selection or dimensionality reduction may be employed to focus on the most relevant variables and improve computational efficiency. This comprehensive data preparation process is vital for producing reliable and actionable insights in subsequent analysis stages.

Below is the process that will be used in this project:

Heart Rate Variability

From this initial analysis of the data, we must isolate the heart beats. Our goal is to detrend the ECG time series data and then apply stationary algorithms to isolate the individual wave forms.

Challenges

An ideal heart rate signal has a clearly defined waveform with easy to identify peaks. However, an actual heart rate signal can be hard to process. The two main contributors to a less-than-ideal signal are : body movement during capture, and weak signal from the electronics.

• Body Movements

Body movement is a large concern in wearable technology as the human body is always in motion. Even slight movements of the hands or fingers can cause an erratic electrical signal. Clinical electrodes are usually taped to the body and are not as easily influenced by body movements.

• Weak Signal

Wearable devices try to conserve battery life by using as little energy as possible. When gathering heart rate signals, the manufacturer may elect to use a low frequency signal to capture the heart rate or limit the amount of data captured. This weak signal will require amplification and processing for accurate HRV detection.

Identify the Peaks

Identifying the peaks is critical to calculating the inter-beat interval. It must be calculated with accuracy as the variation between the beats is used to determine the HRV values.

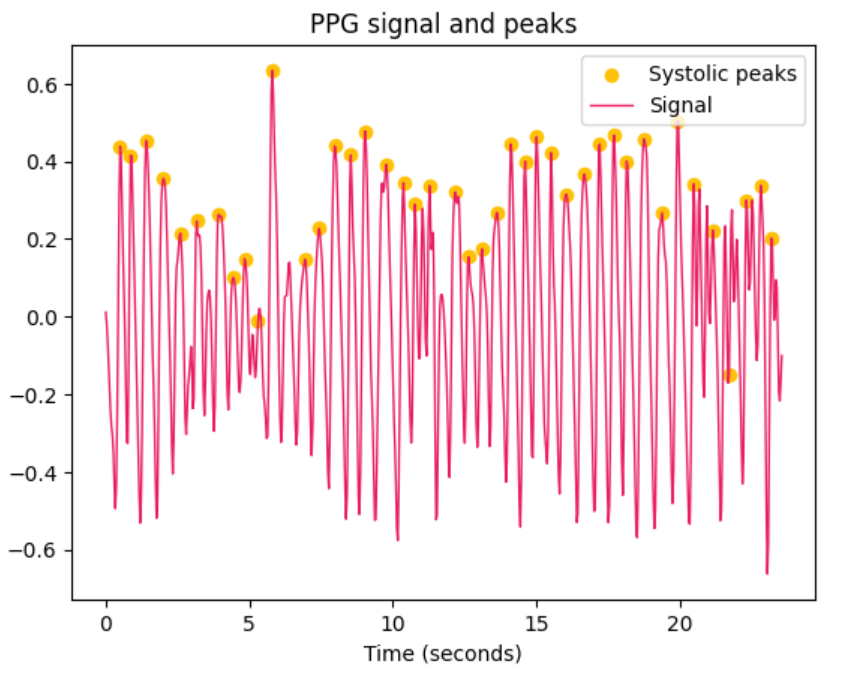

Below is a sample plot showing the identification of the peaks.

And here is an isolated heartbeat from the selected data.

Calculate the Inter-beat "RR" Interval

Now that the peaks are identified and the heartbeat wave is stationary, we can calculate the distribution of RR Intervals. The RR Intervals are the distance between the peaks.

Below is a plot of the distribution of RR intervals in the dataset. We must eliminate the outliers and then use the distribution to begin classification based on the labeled dataset.

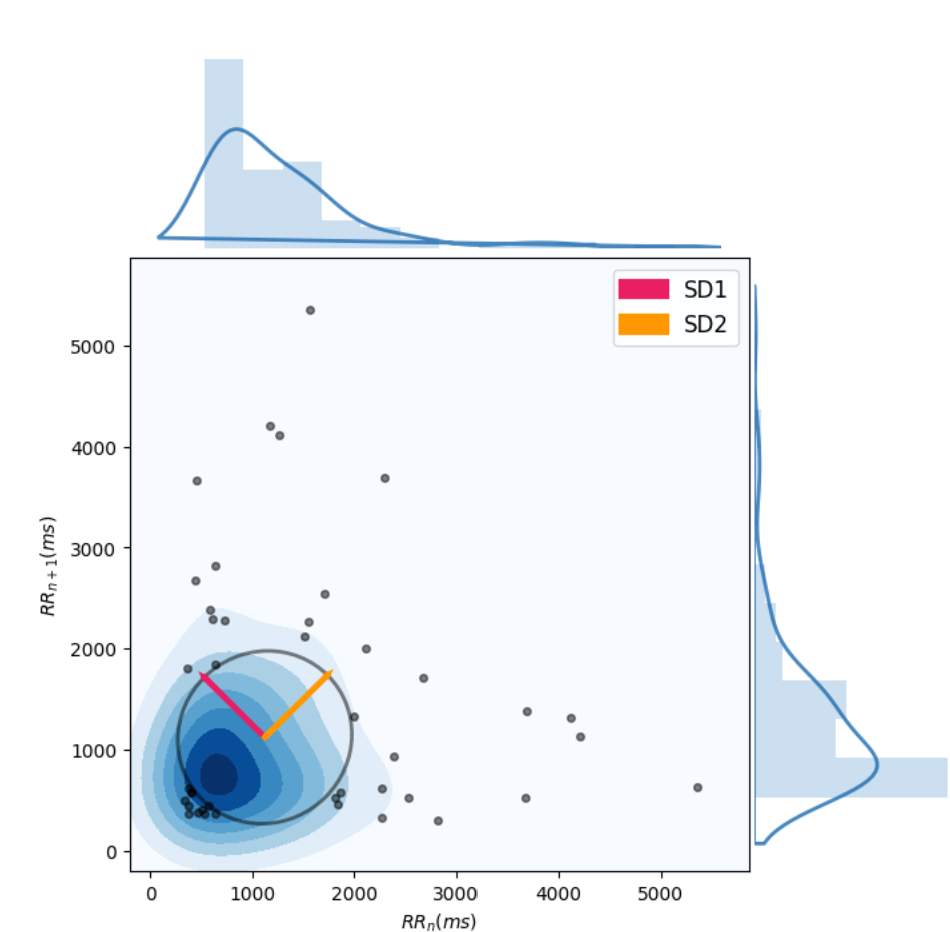

Another useful plotting method is to use a Poincaré Plot. This plot compares each RR interval with the previous and plots the result as a 2-dimensional plot.

Prepare the Data for Modeling

The data is then cleaned of outliers, reformatted, and split into Training, Test, and Validation sets.

Modeling

Modeling consists of several steps:

• Establish a baseline with a simple model.
• Select a series of models that will be compared to the baseline.
• Train the models and compare accuracy results.
• Tune the hyperparameters and rerun to improve the performance.
• Finally, evaluate the Precision, Recall, and F1 scores so we can select the best model.

A Simple Baseline Model

Initially, we want to establish a Baseline model. A simple model that will establish a baseline score from which we can compare to subsequent models.

For the baseline model we used a Logistic Regression model and achieved an accuracy score of 66%. Not a particularly good score, but now we will now go through the process of improving the model using various hyper parameters.

Model Comparisons

We will now run several other models (with minimal tuning) and compare their performance to the Logistic Regression model. We will try a basic KNN algorithm, Decision Tree, and SVM model. Using the default settings for each of the models, we will fit and score each. We will compare the fit time of each of the models.

• Logistic Regression as a baseline
• K-Nearest Neighbor (KNN)
• Decision Tree
• Support Vector Decomposition (SVD)

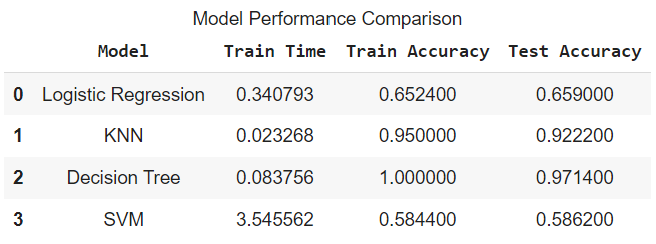

The scores for these models are as follows.

Improving the Model

Now that we have some basic models scored, we will to try to improve them. Below, we will rerun the models with different hyperparameters.

The following hyperparameters were used for the training and evaluation.

And here are the results of training and testing these models with the hyperparameters.

Evaluation

For the evaluation, we will perform another run that will produce Precision, Recall, and F1 scores.

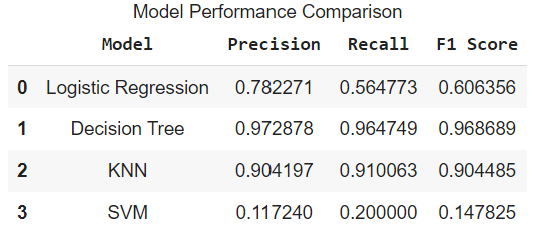

The Decision Tree model produced the best scores of almost 97% across the board as can be seen in the table below.

Evaluation Using Convolution Neural Networks

A Convolutional Neural Network (CNN) was used for additional Modeling and comparison with the other models.

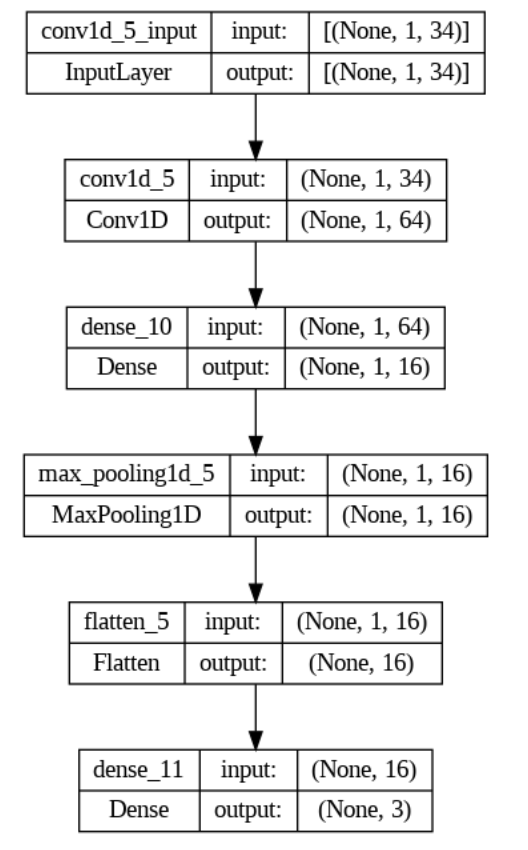

The CNN model used has the following structure.

The CNN model achieved superior results as depicted in the Confusion Matrix.

The final scoring of the CNN Model resulted in values that outperformed the prior models and therefore also met and exceeded the Business Objectives.

Model Results vs Business Criteria

Both the Decision Tree model and the Convolutional Neural Network clearly met all business performance requirements.

Next Steps

Additional fine tuning of the "Deep Learning" models will be evaluated. The final model will be converted to a "TensorFlow-Lite" version that can be ported to a smartphone for onboard processing.

Deployment

The plan is to use this classification model to process data collected from a mobile app that is currently under development. The app uses Photoplethysmography(PPG) to capture heart rate data from a person's finger. PPG has been proven to be effective within a smartphone camera to measure heart rate (De Ridder, B.,et.al., 2018). The process works by detecting subtle color changes in the skin that occur with each heartbeat.

Phased Deployment

The deployment will be conducted in two phases as depicted below.

Phase 1 - Capstone Project

The user will periodically capture PPG readings that are stored on the smartphone. The readings can be uploaded to a cloud host for storage. A computer running the classification model can then be used to download the PPG recordings and determine the state of stress using the current classification model.

Phase 2 - Near Future

In Phase 2, the classification model will be encoded directly into the smartphone using TensorFlow-Lite. The PPG data will be processed locally, and the result will display on a "Stress Indicator" on the same phone.

---

Below are images of the current state of the app. It is fully functional but lacks some cosmetic refinements.

---
